Main Features

• Part Number: ZDJP2000RH-CBGA
• Radiation-Hardened Design: TID ≥100 krad(Si), SEL LETth ≥75 MeV·cm²/mg, SER: ≤1E-5 errors/device·day.
• Input Image Width: 256-8192 pixels.
• Pixel Precision: 8-16 bits.
• Input Image Channels: 1.
• Data Interface: Parallel.
• Compression Standards: Supports JPEG 2000 encoding and JPEG-LS lossless compression.
• Configuration: Compressed image width and height are configurable, but single image pixel count does not exceed 1M.
• Compression Ratio: Supports lossless and lossy, ratio is configurable.
• Processing Speed: Up to 135 MSPS.
• Cloud Detection Accuracy: 98% for general ground features, 92% for ice/snow, false alarm rate not higher than 1%.
• Debug: Supports JTAG debugging.
• Power Supply: Dual power supply; IO voltage: 1.71V ~ 1.89V, Core voltage: 1.14V ~ 1.26V.
• Power Consumption: <3W @ 150 Hz.
• Operating Temperature: -55℃ ~ 125℃.
• Storage Temperature: -65℃ ~ 150℃.

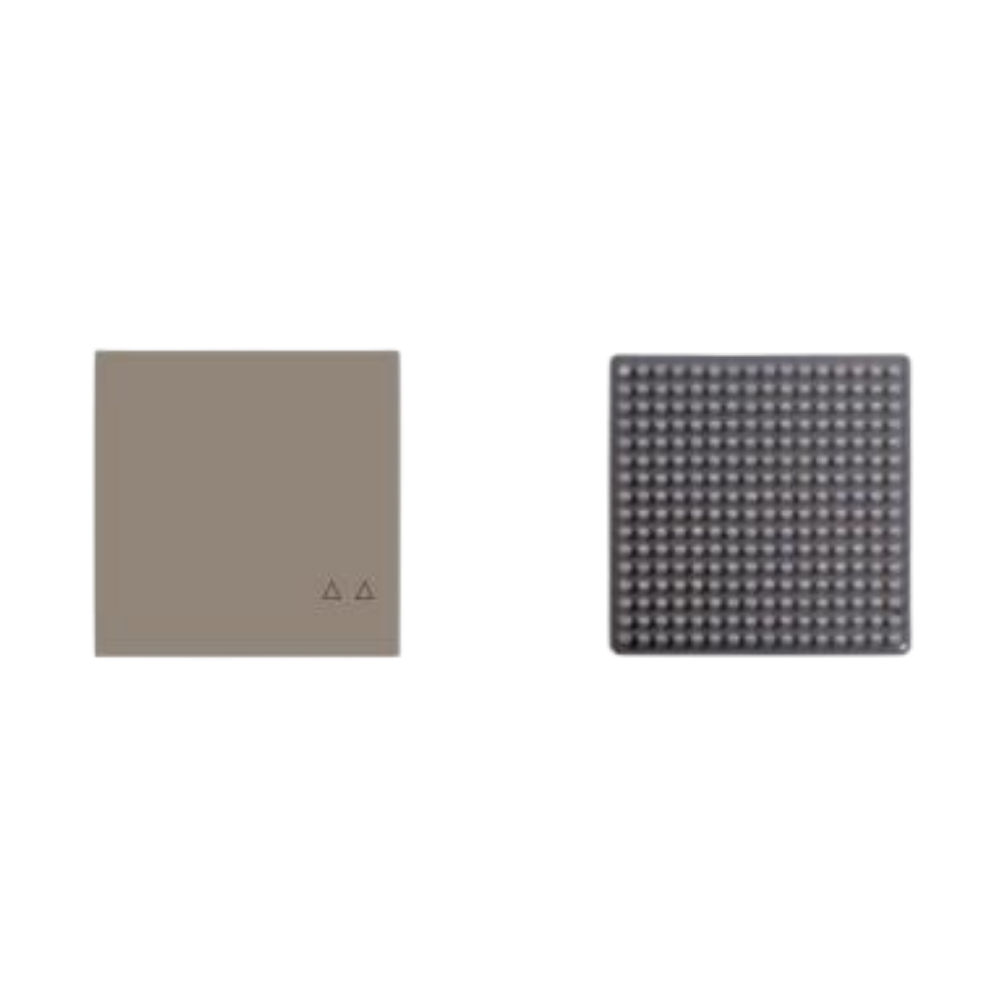

• Package Type: FC-CBGA 256.
• ESD Rating: 2000V (HBM).
