Product Applications

This product is primarily used in high-speed, high-reliability non-volatile data read/write and storage applications.

Main Features

• Capacity: 1 Gbit, 64M × 16 bit
• Part Number: ZDFP64M16-PGAD
• Interface Type: Parallel
• Maximum Access Time: 90 ns
• Maximum Erase/Write Cycles: 100k
• Operating Voltage: 2.7V ~ 3.6V
• Operating Temperature: -55℃ ~ 125℃
• Storage Temperature: -65℃ ~ 150℃

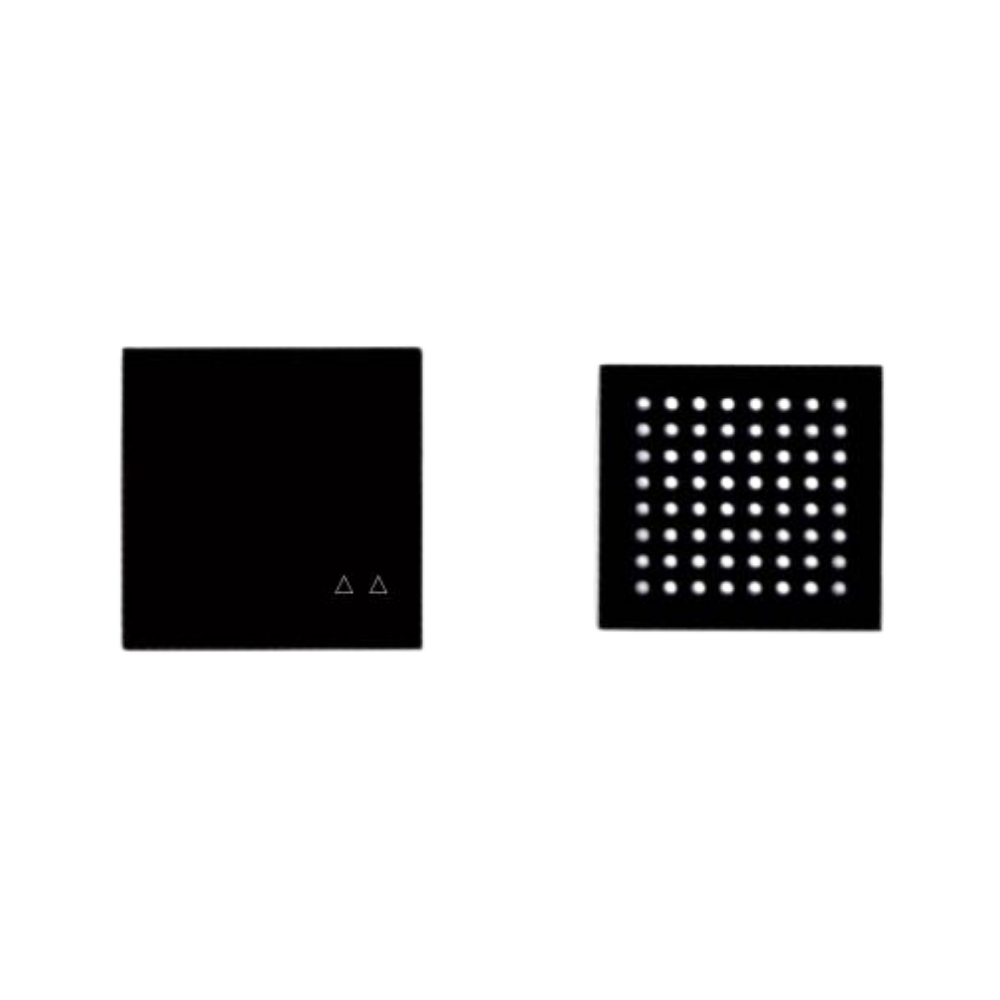

• Package Type: BGA 64
• ESD Rating: 2000V (HBM)

Radiation Hardness Specifications

• Total Ionizing Dose (TID): ≥100 krad(Si)
• Single Event Latch-up (SEL) Threshold: ≥75 MeV·cm²/mg
• Upset Rate: ≤2E-10 errors/bit·day

Feature Description

• Supports CFI (Common Flash Interface)
• Supports single-word programming, write-buffer programming, sector erase, and chip erase
• Supports Toggle bit
• Supports Data Polling
• Supports write protection via #RES pin
