Product Applications

This product is primarily used in various high-speed memory systems in high-radiation environments.

Main Features

• Capacity: 256 Mbit, 16M × 16 bit
• Part Number: ZDFP16M16RH-CFPE
• Interface Type: Parallel
• Maximum Access Time: 200 ns
• Maximum Erase/Write Cycles: 100k
• Operating Voltage: 2.7V ~ 3.6V
• Operating Temperature: -55℃ ~ 125℃
• Storage Temperature: -65℃ ~ 150℃

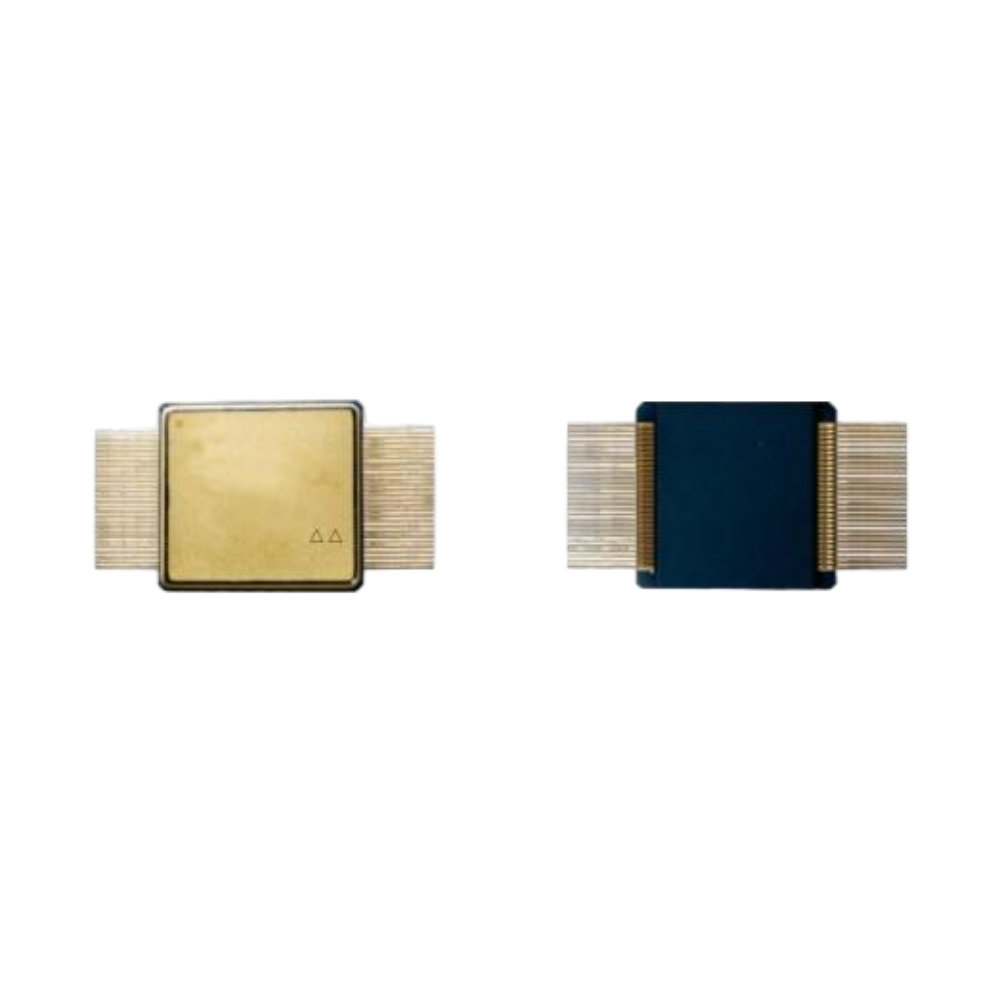

• Package Type: CFP 56
• ESD Rating: 2000V (HBM)

Radiation Hardness Specifications

• Total Ionizing Dose (TID): ≥100 krad(Si)
• Single Event Latch-up (SEL) Threshold: ≥84 MeV·cm²/mg
• Soft Error Rate (SER): ≤7.5E-16 errors/bit·day

Feature Description

• Supports CFI (Common Flash Interface)
• Supports single-word programming, write-buffer programming, sector erase, and chip erase
• Supports Toggle bit and Data Polling
• Supports write protection via #RES pin
