Product Applications

This product is primarily used in high-reliability and high-speed data storage applications.

Main Features

• Capacity: 8 Mbit, 512K × 16 bit
• Part Number: EASP512K16-10PSO/EASP512K16-10PSODW/EASP512K16-10PSODI
• Maximum Access Time: 12 ns
• Operating Voltage: 2.4V ~ 3.6V
• Operating Mode: Asynchronous
• Operating Temperature: -55℃ ~ 125℃
• Storage Temperature: -65℃ ~ 150℃

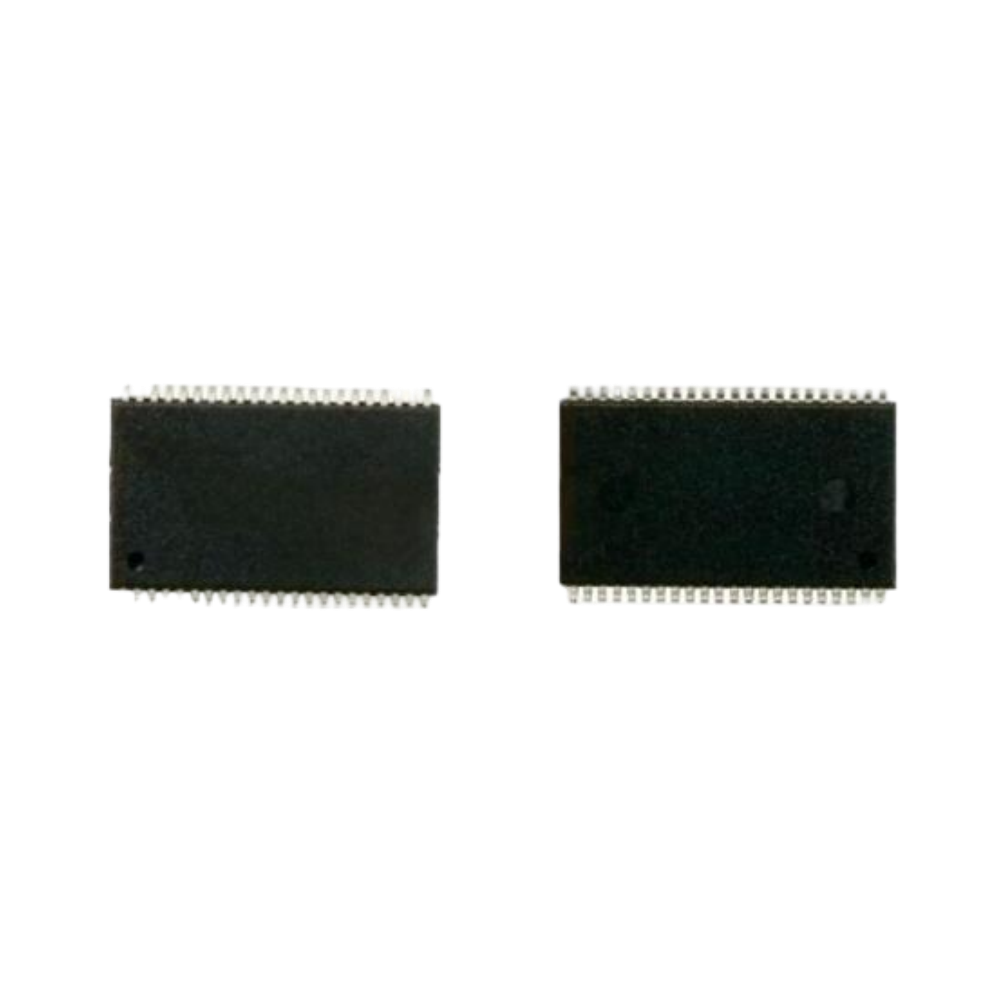

• Package Type: TSOP 44
• ESD Rating: 2000V (HBM)

Feature Description

• High-performance, low-power CMOS process
• Fully static operation: no clock or refresh operations required
• Expansion support: #CE and #OE
• TTL-compatible I/O
• High-byte control signal (#UB) and low-byte control signal (#LB) enable data read/write control for high and low 8-bit bytes
• Uniformly distributed power and ground pins within the chip for enhanced noise immunity
